BT-FMB FACE MILL HOLDER (STRAIGHT STYLE)

Standard: MAS403 BT SYSTEM
Material:
Accuracy: ≦0.005MM
Balance: ≧12000RPM
Extra balance treatment please accordingly inquire.

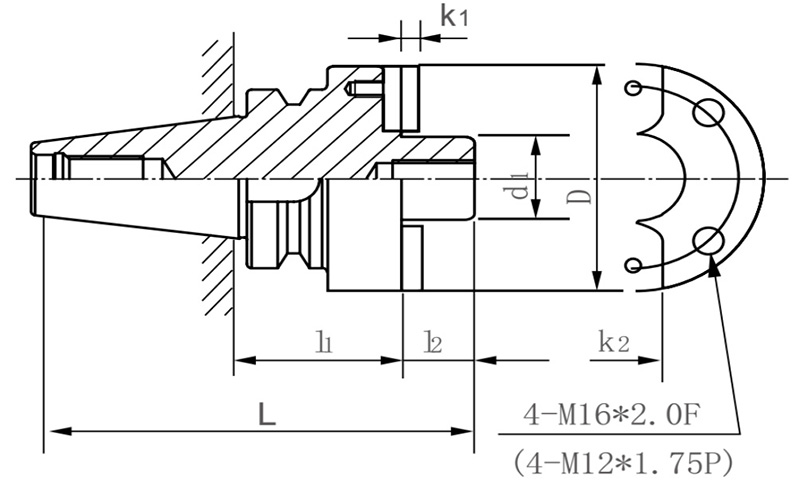

FMB-5

Code No. D d1 d2 L1 L2 L K1 K2
BT30-FMB22-45 48 22 26 45 18 111.4 4.8 10
BT30-FMB27-45 60 27 33 45 20 113.4 5.8 12
BT30-FMB32-45 78 32 40 45 22 115.4 6.8 15
BT40-FMB22-45 48 22 26 45 18 128.4 4.8 10
BT40-FMB22-60 48 22 26 60 18 143.4 4.8 10
BT40-FMB22-90 48 22 26 70 18 173.4 4.8 10
BT40-FMB22-150 48 22 26 150 18 128.4 4.8 10
BT40-FMB22-200 48 22 26 200 18 143.4 4.8 10
BT40-FMB22-250 48 22 26 250 18 173.4 4.8 10
BT40-FMB27-45 60 27 33 45 20 130.4 5.8 12
BT40-FMB27-60 60 27 33 60 20 130.4 5.8 12
BT40-FMB27-100 60 27 33 100 20 130.4 5.8 12
BT40-FMB32-45 78 32 40 45 22 132.4 5.8 12
BT40-FMB32-60 78 32 40 45 22 132.4 5.8 12
BT40-FMB40-45 80 40 50 45 25 135.4 8.3 16
BT50-FMB22-45 48 22 26 45 18 164.8 4.8 10
BT50-FMB22-100 48 22 26 100 18 219.8 4.8 10
BT50-FMB22-150 48 22 26 150 18 269.8 4.8 10
BT50-FMB22-250 48 22 26 250 18 369.8 4.8 10
BT50-FMB22-300 48 22 26 300 18 369.8 4.8 10
BT50-FMB27-75 60 27 33 75 20 141.8 5.8 12
BT50-FMB27-100 60 27 33 75 20 141.8 5.8 12
BT50-FMB32-75 78 32 40 75 22 143.8 6.8 14
BT50-FMB40-75 85 40 50 75 25 145.8 8.3 16
BT50-FMB40F-75 110 40 / 75 26 202.8 8.3 16
