OHS MANUAL MULTI OIL HOLE HOLDER

Standard: MAS403 BT SYSTEM
Material:
Accuracy: ≦0.005MM
Balance: ≧12000RPM
Extra balance treatment please accordingly inquire.

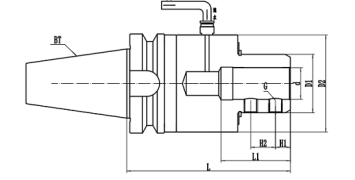

VJR0BPV6ZQW3P08




Code No. d D1 D2 L L1 H1 H2 G KG
BT30-OHS16-150 16 49 82 150 48 25 - M12*1.75
BT30-OHS20-150 20 50
BT30-OHS25-150 25 56 15 20 M16*2.0
BT30-OHS32-150 32 60 M12*1.75










BT40-OHS16-150 16 49 82 150 48 25 - M12*1.75 3.8
BT40-OHS20-150 20 50 3.9
BT40-OHS25-150 25 56 15 20 M16*2.0 4.1
BT40-OHS32-150 32 59 98 165 60 5.6










BT50-OHS16-165 16 49 82 165 48 25 - M12*1.75 8.2
BT50-OHS20-165 20 50 8.1
BT50-OHS25-165 25 56 15 20 M16*2.0 7.9
BT50-OHS32-165 32 59 98 60 7.7
BT50-OHS40-165 40 70 25 M14*2.0 7.5
BT50-OHS50-165 50 89 126 210 150 35 35 M20 10.5


油路套装-1


油路套装-2
