C-TER STRAIGHT SHANK RIGID TAPER HOLDER

Standard: MAS403 BT SYSTEM
Material:
Accuracy: ≦0.005MM
Balance: ≧12000RPM
Availability:
Inquire

FX8LID55NI37IO3_A

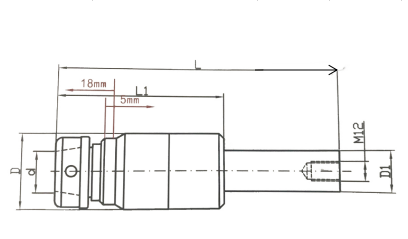

Code No. D d L1 L2 D1 Suit Collect Tapping Capacity
C20-50/100-ETP16 46 - 147/197 97 20 ER16 M2-M12
C20-50-100-ETP20 46 - 149/199 99 20 ER20 M2-M16
C20-50-100-ETP25 46 - 161/201 101 20 ER25 M2-M22
C20-50-100-ETP32 46 - 164/204 104 20 ER32 M2-M30








C25-50/100-ETP16 46 - 147/197 97 25 ER16 M2-M12
C25-50-100-ETP20 46 - 149/199 99 25 ER20 M2-M16
C25-50-100-ETP25 46 - 161/201 101 25 ER25 M2-M22
C25-50-100-ETP32 46 - 164/204 104 25 ER32 M2-M30
