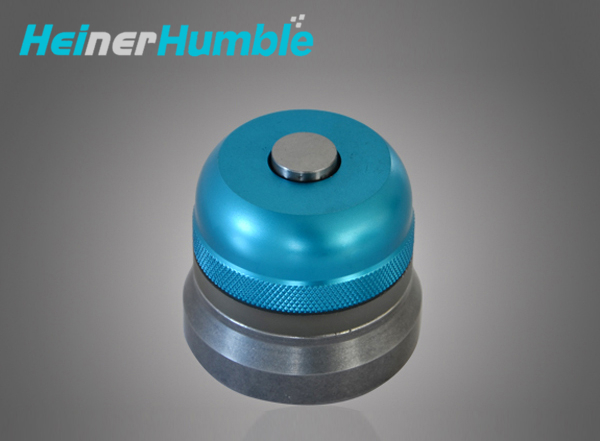

TOUCH LAMP AXIAL PRESET GAUGE

Feature:
Accuracy 0.0002"
360°red lamp lights up when touched
Chief height(50mm)
Magnetic base(use vertically or horizontally)

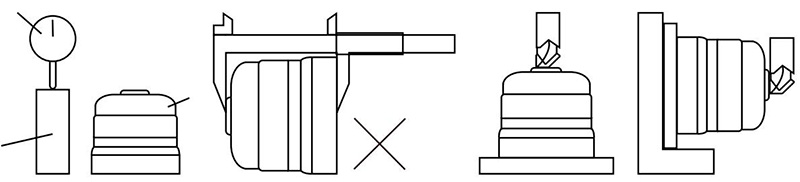

Instructions:

1.Check height of unit with a gauge block and dial indicator.Turn allen screw on the side of the unit if adjustment is needed.

2.Do not use calipers for presetting unit,only use gauge block.

3.Move the cutting tool tip towards the sensor button until the unit lights up,then reverse direction until the light goes off.

4.When presetting diameter,rotate tool slowly for higher precision.

Touch Lamp Axial Preset Gauge Details


Code No. Type
Chief Height
ZOP-50 Touch Lamp as inllustrated ZOP-50 50mm
