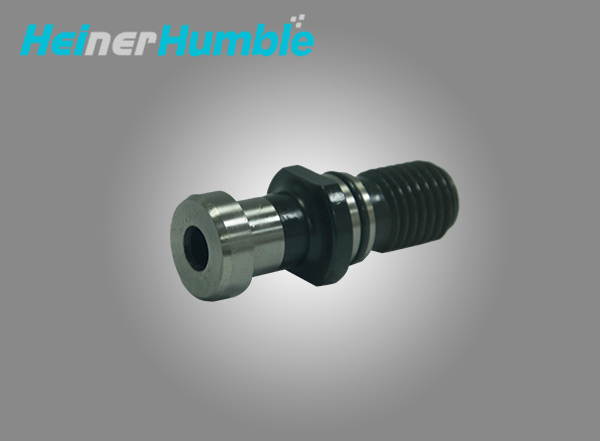

Availability: | |
---|---|
Without Coolant Hole
Without O-ring

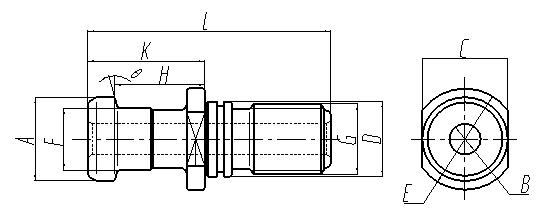

Code N | Tool Shank | θ | G | D | A | H | L | E |
PS-TC40A-SF | 15° | M16*2 | 17 | 19 | 20 | 54 | 23 | |
PS-TC50A-SF | 15° | M24*3 | 25 | 28 | 25 | 74 | 36 |
Without Coolant Hole
With O-ring
Code N | Tool Shank | θ | G | D | A | H | L | E |
PS-TC40A-SF-O | 15° | M16*2 | 17 | 19 | 20 | 54 | 23 | |
PS-TC50A-SF-O | 15° | M24*3 | 25 | 28 | 25 | 74 | 36 |
With Coolant Hole
Without O-ring
Code N | Tool Shank | θ | G | D | A | H | L | E | B |
PS-TC40A-W | 15° | M16*2 | 17 | 19 | 20 | 54 | 23 | 7 | |
PS-TC50A-W | 15° | M24*3 | 25 | 28 | 25 | 74 | 36 | 11 |
With Coolant Hole
With O-ring
Code N | Tool Shank | θ | G | D | A | H | L | E | B |
PS-TC40A-W-O | 15° | M16*2 | 17 | 19 | 20 | 54 | 23 | 7 | |
PS-TC50A-W-O | 15° | M24*3 | 25 | 28 | 25 | 74 | 36 | 11.5 |
Without Coolant Hole
Without O-ring
Code N | Tool Shank | θ | G | D | A | H | L | E |
PS-TC40A-SF | 15° | M16*2 | 17 | 19 | 20 | 54 | 23 | |
PS-TC50A-SF | 15° | M24*3 | 25 | 28 | 25 | 74 | 36 |
Without Coolant Hole
With O-ring
Code N | Tool Shank | θ | G | D | A | H | L | E |
PS-TC40A-SF-O | 15° | M16*2 | 17 | 19 | 20 | 54 | 23 | |
PS-TC50A-SF-O | 15° | M24*3 | 25 | 28 | 25 | 74 | 36 |
With Coolant Hole
Without O-ring
Code N | Tool Shank | θ | G | D | A | H | L | E | B |
PS-TC40A-W | 15° | M16*2 | 17 | 19 | 20 | 54 | 23 | 7 | |
PS-TC50A-W | 15° | M24*3 | 25 | 28 | 25 | 74 | 36 | 11 |
With Coolant Hole
With O-ring
Code N | Tool Shank | θ | G | D | A | H | L | E | B |
PS-TC40A-W-O | 15° | M16*2 | 17 | 19 | 20 | 54 | 23 | 7 | |
PS-TC50A-W-O | 15° | M24*3 | 25 | 28 | 25 | 74 | 36 | 11.5 |
