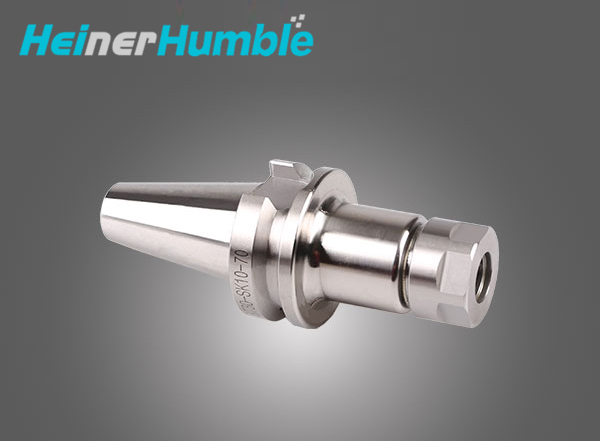

BT-SK HIGH SPEED PRECISION COLLET CHUCK

Standard: MAS403 BT SYSTEM
Material: 20CrMnTi
Accuracy: ≦0.005MM
Balance: ≧12000RPM
Extra balance treatment please accordingly inquire.
Availability:
Inquire

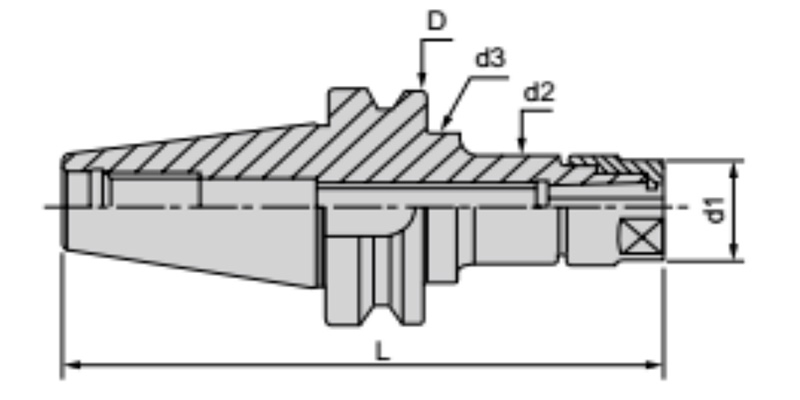

BT-SK High Speed Precision Collet Chuck-1

Code No Range D d1 d2 d3 L Suit Nut Weight
BT30-SK6A-70 0.7-6.0 46 19.5 20.5 20.5 118.4 SK6-A 0.9
BT30-SK6A-100 0.7-6.0 46 19.5 20.5 32 148.4 SK6-A 0.95
BT30-SK10A-70 1.75-10.0 46 27.5 29 29 118.4 SK10-A 0.95
BT30-SK10A-100 1.75-10.0 46 27.5 29 29 148.4 SK10-A 1
BT40-SK6A-70 0.7-6.0 63 19.5 20.5 20.5 135.4 SK6-A 1.1
BT40-SK6A-100 0.7-6.0 63 19.5 20.5 32 165.4 SK6-A 1.2
BT40-SK6A-120 0.7-6.0 63 19.5 20.5 32 185.4 SK6-A 1.4
BT40-SK10A-70 1.75-10.0 63 27.5 29 29 135.4 SK10-A 1.5
BT40-SK10A-100 1.75-10.0 63 27.5 29 40 165.4 SK10-A 1.6
BT40-SK10A-120 1.75-10.0 63 27.5 29 40 185.4 SK10-A 1.7
BT40-SK10A-150 1.75-10.0 63 27.5 29 40 215.4 SK10-A 1.8
BT50-SK10A-105 1.75-10.0 100 27.5 29 29 206.8 SK10-A 4.5
BT50-SK10A-135 1.75-10.0 100 27.5 29 32 236.8 SK10-A 4.6
BT50-SK10A-165 1.75-10.0 100 27.5 29 32 266.8 SK10-A 4.7
BT30-SK16M-100 2.75-16.0 46 40 41.9 41.9 148.4 SK16-M 1.1
BT30-SK16M-120 2.75-16.0 46 40 41.9 41.9 168.4 SK16-M 1.2
BT30-SK16M-150 2.75-16.0 46 40 41.9 41.9 198.4 SK16-M 1.3
BT30-SK25M-100 16.0-25.4 46 55 56.1 56.1 148.4 SK25-M 1.4
BT40-SK16M-70 2.75-16.0 63 40 41.9 41.9 135.4 SK16-M 1.6
BT40-SK16M-100 2.75-16.0 63 40 41.9 41.9 165.4 SK16-M 1.7
BT40-SK16M-120 2.75-16.0 63 40 41.9 41.9 185.4 SK16-M 1.8
BT40-SK16M-150 2.75-16.0 63 40 41.9 41.9 215.4 SK16-M 1.9
BT40-SK25M-100 16.0-25.4 63 55 56.1 56.1 165.4 SK25-M 1.7
BT40-SK25M-120 16.0-25.4 63 55 56.1 56.1 185.4 SK25-M 1.8
BT50-SK16M-100 2.75-16.0 100 40 41.9 41.9 201.8 SK16-M 4.6
BT50-SK16M-125 2.75-16.0 100 40 41.9 41.9 226.8 SK16-M 4.5
BT50-SK16M-150 2.75-16.0 100 40 41.9 50 251.8 SK16-M 4.7
BT50-SK16M-195 2.75-16.0 100 40 41.9 52 296.8 SK16-M 5.1
BT50-SK25M-100 16.0-25.4 100 55 56.1 56.1 201.8 SK25-M 4.5
BT50-SK25M-125 16.0-25.4 100 55 56.1 56.1 226.8 SK25-M 4.7
BT50-SK25M-150 16.0-25.4 100 55 56.1 56.1 251.8 SK25-M 4.9
BT50-SK25M-200 16.0-25.4 100 55 56.1 56.1 301.8 SK25-M 5.3
