C STRAIGHT COLLET POWER MILLING CHUCK

Standard: MAS403 BT SYSTEM
Material:
Accuracy: ≦0.005MM
Extra balance treatment please accordingly inquire.

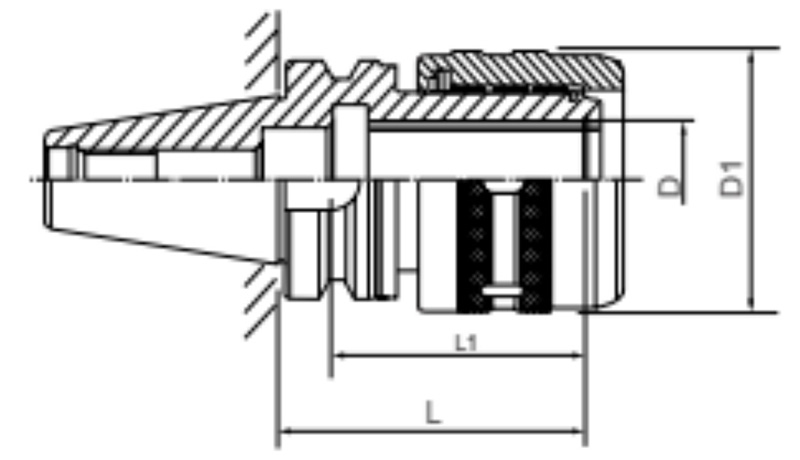

Handle-24-C-STRAIGHT-1-1

Code No. φD L φD1 L1
MIN MAX
BT30-C20-80 20 80 53 45 70
BT40-C20-105 105
BT40-C32-105 32 105 70 50 76
BT40-C32-135 135
BT50-C20-105 20 105 53 45 70
BT50-C32-105 32 105 74 60 95
BT50-C32-135 135
BT50-C32-165 165
BT50-C42-115 42 115 92 98
BT50-C42-135 135
BT50-C42-165 165
