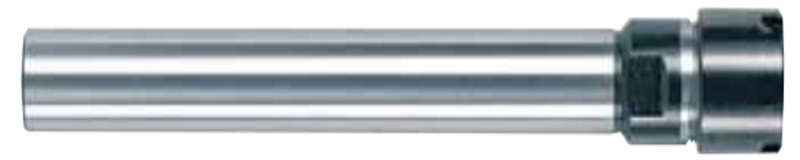

STRAIGHT SHANK A

Straight Shank A Details

Milling Tooling System-Accessories

Straight Shank ER Collet Chuck Holder(M/UM Type)

5

6

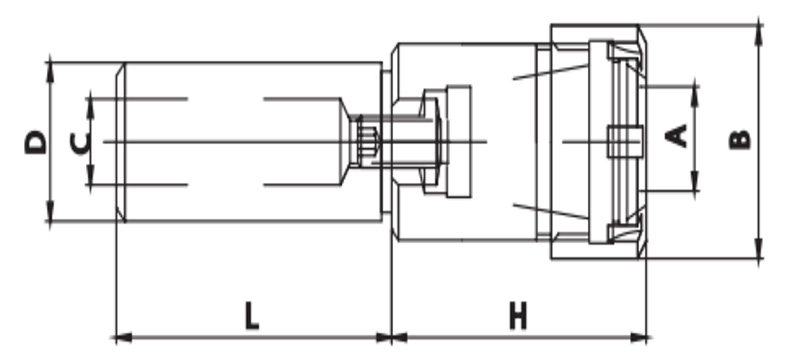

Product Model L H B Screw
Straight Shank
C8-ER8M-55 55 24 12
C10-ER11M-55 55 25 16 M4X14
C10-ER16M-60 60 37 22 M4X14
C12-ER16M-80 80 37 22 M6X14
C16-ER16M-80 80 37 22 M6X14
C12-ER8M-100 100 15 12 M4X14
C12-ER11M-70 70 25 16 M6X14
C12-ER11M-100 100 25 16 M6X14
C12-ER11M-140 140 25 16 M6X14
C16-ER16M-100 100 37 22 M6X14
C16-ER16M-130 130 37 22 M6X14
C16-ER16M-160 160 37 22 M6X14
C16-ER11M-200 200 22 16 M6X14
C16-ER16M-200 200 37 22 M6X14
C10-ER8M-100 100 24 12 M4X14
C10-ER11M-100 100 25 16 M4X14
C12-ER8M-140 140 15 12 M4X14
C16-ER11M-80 80 22 16 M6X14
C16-ER11M-100 100 22 16 M6X14
C16-ER11M-130 130 22 16 M6X14
C16-ER11M-160 160 22 16  M6X14
C16-ER16M-35 35 37 22 M6X14
C16-ER16M-60 60 37 22 M6X14
C16-ER20M-55 55 40 28 M8X20
