SK-UP PRECISION COLLET(ULTRA PRECISION)

Feature:
-It is ideal for a variety of machining applications including boring milling,reaming,tapping and grinding.
-Material:SUJ2
-HRC46 degree


Feature:

-It is ideal for a variety of machining applications including boring milling,reaming,tapping and grinding.

-Material:SUJ2

-HRC46 degree

-SK Collet designed with 8 degree cone angle which shortens the suspended length of a collet,-therefore,the clamping power is huge.

-the tolerance of the clamping tool is limited during H7

-the hollow diameter is smaller than 3mm,its elastic contract is 0.25mm

-the hollow diameter is larger than 3mm,its elastic contract is 0.5mm

-Accuracy:T.I.R.<0.005mm UP Grade.

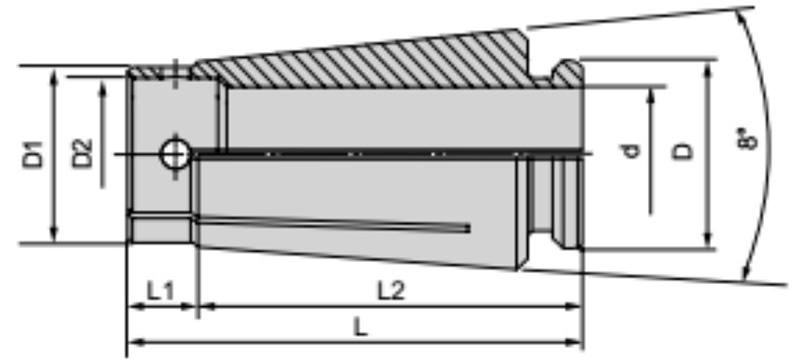

SK-UP




Code No. D1
D2 d L L1 L2
UP-SK6 10.5 7.5 5.8 25 4 17.4
UP-SK10 15.5 12 9.8 30.5 5 21.3
UP-SK16 24.6 18.8 15.75 45 8 32
UP-SK25 35.6 28.9 25.4 57 8.5 43
Code No. D
Clamping Range
UP-SK6-2 10.4 1.8-2.0
UP-SK6-2.25 2.05-2.25
UP-SK6-2.5 2.3-2.5
UP-SK6-2.75 2.55-2.75
UP-SK6-3 2.8-3.0
UP-SK6-3.5 3.0-3.5
UP-SK6-4 3.5-4.0
UP-SK6-4.5 4.0-4.5
UP-SK6-5 4.5-5.0
UP-SK6-5.5 5.0-5.5
UP-SK6-6 5.5-6.0
Code No. D
Clamping Range
UP-SK16-3 24.63
2.75-3.0
UP-SK16-3.5 3.0-3.5
UP-SK16-4 3.5-4.0
UP-SK16-4.5 4.0-4.5
UP-SK16-5 4.5-5.0
UP-SK16-5.5 5.0-5.5
UP-SK16-6 5.5-6.0
UP-SK16-6.5 6.0-6.5
UP-SK16-7 6.5-7.0
UP-SK16-7.5 7.0-7.5
UP-SK16-8 7.5-8.0
UP-SK16-8.5 8.0-8.5
UP-SK16-9 8.5-9.0
UP-SK16-9.5 9.0-9.5
UP-SK16-10 9.5-10.0
UP-SK16-10.5 10.0-10.5
UP-SK16-11 10.5-11.0
UP-SK16-11.5 11.0-11.5
UP-SK16-12 11.5-12.0
UP-SK16-12.5 12.0-12.5
UP-SK16-13 12.5-13.0
UP-SK16-13.5 13.0-13.5
UP-SK16-14 13.5-14.0
UP-SK16-14.5 14.0-14.5
UP-SK16-15 14.5-15.0
UP-SK16-15.5 15.0-15.5
UP-SK16-16 15.5-16.0
Code No. D
Clamping Range
UP-SK10-2 15.6

1.75-2.0
UP-SK10-2.25 2.0-2.25
UP-SK10-2.75 2.5-2.75
UP-SK10-3 2.75-3.0
UP-SK10-3.5 3.0-3.5
UP-SK10-4 3.5-4.0
UP-SK10-4.5 4.0-4.5
UP-SK10-5 4.5-5.0
UP-SK10-5.5 5.0-5.5
UP-SK10-6 5.5-6.0
UP-SK10-6.5 6.0-6.5
UP-SK10-7 6.5-7.0
UP-SK10-7.5 7.0-7.5
UP-SK10-8 7.5-8.0
UP-SK10-8.5 8.0-8.5
UP-SK10-9 8.5-9.0
UP-SK10-9.5 9.0-9.5
UP-SK10-10 9.5-10.0


Code No. D
Clamping Range
UP-SK25-16.5 35.7

16.0-16.5
UP-SK25-17 16.5-17.0
UP-SK25-17.5 17.0-17.5
UP-SK25-18 17.5-18.0
UP-SK25-18.5 18.0-18.5
UP-SK25-19 18.5-19.0
UP-SK25-19.5 19.0-19.5
UP-SK25-20 19.5-20.0
UP-SK25-20.5 20.0-20.5
UP-SK25-21 20.5-21.0
UP-SK25-21.5 21.0-21.5
UP-SK25-22 21.5-22.0
UP-SK25-22.5 22.0-22.5
UP-SK25-23 22.5-23.0
UP-SK25-23.5 23.0-23.5
UP-SK25-24 23.5-24.0
UP-SK25-24.5 24.0-24.5
UP-SK25-25 24.5-25.0
UP-SK25-25.5 25.0-25.4
