STRAIGHT SHANK M

Straight Shank M Details

Milling Tooling System-Accessories

Straight Shank ER Collet Chuck Holder(M/UM Type)

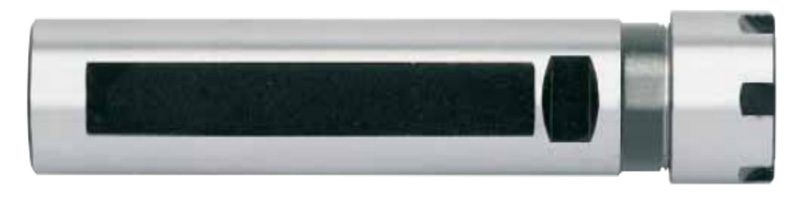

3

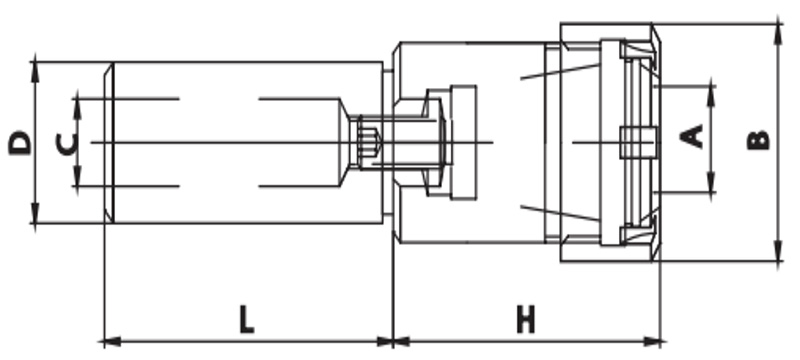

4


Product Model L H B Screw
Straight Shank
C20-ER20M-100 100 37 28 M10X20
C20-ER25M-100 100 46 35 M10X20
C20-ER16M-60 60 30 22 M10X20
C20-ER16M-100 100 30 22 M10X20
C20-ER16M-160 160 30 22 M10X20
C20-ER20M-60 60 37 28 M10X20
C20-ER20M-160 160 37 28 M10X20
C25-ER20M-60 60 28 28 M12X30
C25-ER20M-160 160 28 28 M12X30
C32-ER20M-90 90 27 28 M12X30
C20-ER11M-50 50 22 16 M6X14
C20-ER11M-100 100 22 16 M6X14
C20-ER16M-130 130 30 22 M10X20
C20-ER16M-200 200 30 22 M10X20
C20-ER20M-200 200 37 28 M10X20

C25-ER16M-60

60 27 22 M10X20
