STRAIGHT SHANK UM

Straight Shank UM Details


Milling Tooling System-Accessories

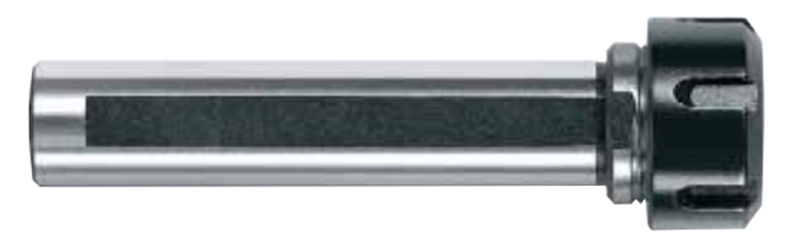

Straight Shank ER Collet Chuck Holder(M/UM Type


1

2


Product Model L H B Screw
Straight Shank
C32-ER32UM-70 70 38 50 M22x1,5x8
C25-ER25UM-50 50 32 42 M12X30
C20-ER25UM-100 100 46 42 M10X20
C25-ER25UM-100 100 32 42 M12X30
C32-ER25UM-70 70 28 42 M18x1,5x10
C40-ER32UM-70 70 30 50 M22x1,5x8
C40-ER32UM-130 130 30 50 M22x1,5x8
C40-ER40UM-80 80 60 63 M27x1,5x8
C25-ER32UM-50 50 54 50 M12X30
C25-ER32UM-70 70 54 50 M12X30
C32-ER32UM-50 50 38 50 M22x1,5x8
C32-ER32UM-100 100 38 50 M22x1,5x8
C40-ER25UM-70 70 42 42 M18x1,5x10
C50-ER32UM-125 125 32 50 M22x1,5x8
