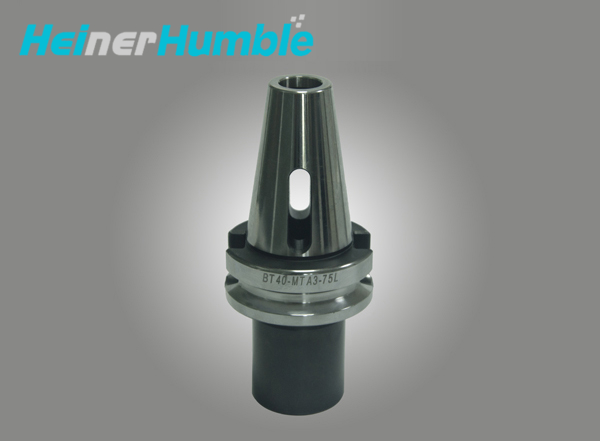

BT-MTA MORSE TAPER HOLDER FOR DRILL

Standard: MAS403 BT SYSTEM
Material:
Accuracy: ≦0.005MM
Balance: ≧12000RPM
Extra balance treatment please accordingly inquire.

BT-MTA

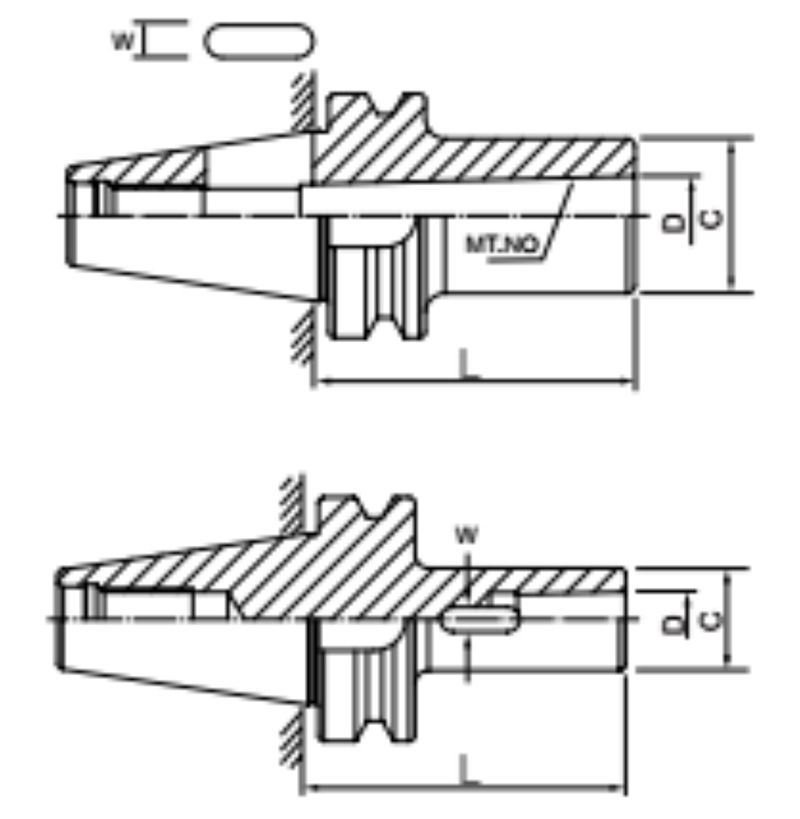

Code No. MT.NO D W L C Fig
BT30-MTA1-45 1 12.065  45 20 5.6 1
BT30-MTA2-45 2 17.780  45 30 6.6 1
BT30-MTA3-45 3 23.825  45 40 8.4 1
BT40-MTA1-45 1 12.065  45 25 5.6 1
BT40-MTA1-120 1 12.065  120 25 5.6 2
BT40-MTA2-45 2 17.780  45 32 6.6 1
BT40-MTA2-120 2 17.780  120 32 6.6 2
BT40-MTA3-70 3 23.825  75 40 8.4 1
BT40-MTA3-135 3 23.825  135 40 8.4 2
BT40-MTA4-90 4 31.065  90 50 12.4 1
BT40-MTA4-165 4 31.065  165 50 12.4 2
BT50-MTA1-45 1 12.065  45 25 5.6 1
BT50-MTA1-120 1 12.065  120 25 5.6 2
BT50-MTA1-180 1 12.065  180 25 5.6 2
BT50-MTA2-45 2 17.780  45 25 6.6 1
BT50-MTA2-135 2 17.780  135 25 6.6 2
BT50-MTA2-180 2 17.780  180 25 6.6 2
BT50-MTA3-45 3 23.835  45 40 8.4 1
BT50-MTA3-150 3 23.835  150 40 8.4 2
BT50-MTA3-180 3 23.835  180 40 8.4 2
BT50-MTA4-75 4 44.399  75 50 12.4 1
BT50-MTA4-180 4 44.399  180 50 12.4 2
BT50-MTA4-105 4 44.399  105 50 12.4 1
