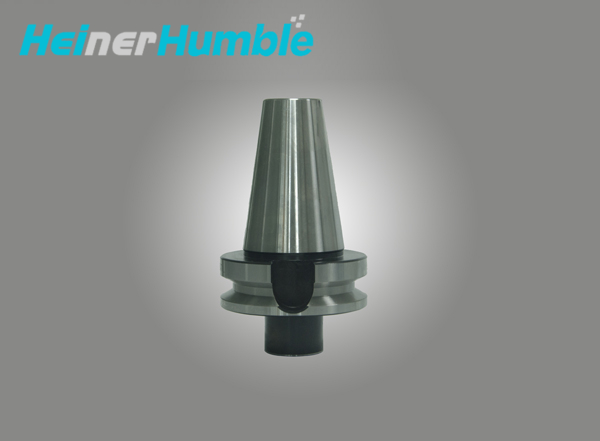

BT-MTB MORSE TAPER HOLDER FOR MILL

Standard: MAS403 BT SYSTEM
Material:
Accuracy: ≦0.005MM
Balance: ≧12000RPM
Extra balance treatment please accordingly inquire.
Availability:
Inquire

WH6E7T00WEMC4_A9IB

Code No. MT.NO D L C C1 G
BT30-MTB1-45 1 12.065  45 25 10 M6*1.0P
BT40-MTB1-45 1 12.065  45 25 10 M6*1.0P
BT40-MTB2-45 2 17.780  45 32 13.5 M10*1.5P
BT40-MTB3-75 3 23.835  75 42 18 M12*1.75P
BT40-MTB4-75 4 31.267  75 50 20.5 M16*2P
BT50-MTB1-45 1 12.065  45 25 10 M6*1.0P
BT50-MTB2-45 2 17.780  45 32 16 M10*1.5P
BT50-MTB3-60 3 23.825  60 42 18 M12*1.75P
BT50-MTB4-75 4 31.267  75 50 20.5 M16*2P
