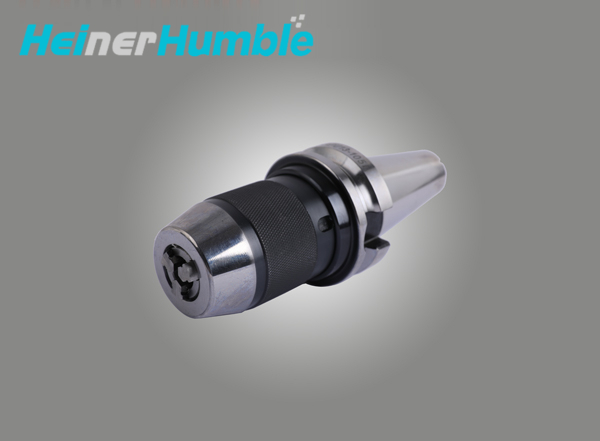

BT-APU DRILL CHUCK

Standard: MAS403 BT SYSTEM
Material:
Accuracy: ≦0.005MM
Balance: ≧12000RPM
Extra balance treatment please accordingly inquire.
Availability:
Inquire

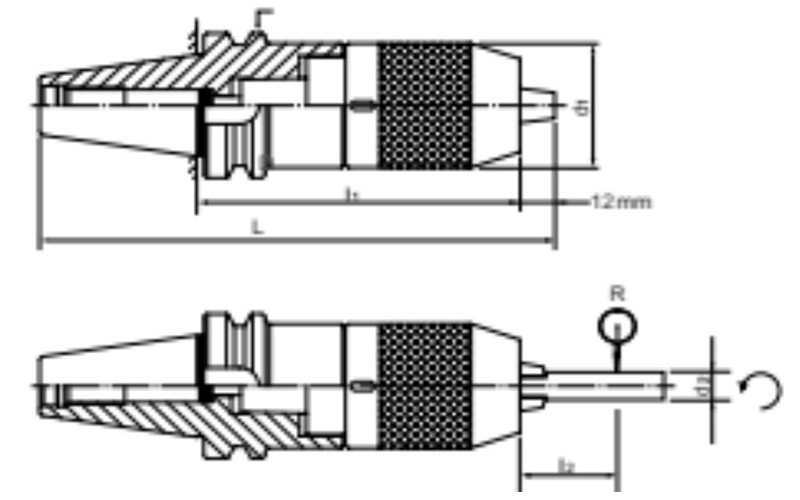

APU-5

Code No. L1 L L2 D d1 d2
BT30-APU8-80 80 137.4 55 46 37 6
BT30-APU13-110 110 170.4 75 50 13
BT40-APU8-85 8 159.4 55 63 37 6
BT40-APU13-110 110 187.4 75 50 13
BT40-APU16-130 130 212.4 80 57 16
BT50-APU13-120 120 223.4 75 100 50 13
BT50-APU13-180 180 293.4 75 57 16
BT50-APU16-130 130 248.4 80 57 16
BT50-APU16-190 190 308.8 80 57 16
